We tend to judge a pH electrode by one simple metric: how quickly it disappears from our list of worries. The Thermo Scientific Orion ROSS Ultra low Maintenance Triode, with Waterproof BNC 8 Pin Mini DIN Connector, 0 to 14 pH (model 8107BNUMD) promised to do exactly that, so we put it through a week of real lab and bench-top use to see whether the claim holds up. Out of the box it felt solid – an epoxy body, a 120 × 12 mm form factor and a 1 m cable with a waterproof BNC and 8‑pin Mini‑DIN ending that made hookups straightforward on our meters and portable rigs alike.
What drew us in was the blend of practical features: a gel‑filled combination triode that measures pH and temperature (with ATC), a glass‑fiber junction, and a patented internal reference intended to minimize drift and equilibrium time. Specs on paper – 0-14 pH range, ±0.01 pH (±0.03 with ATC), temperature range 0-100 °C (±1 °C), plus an extended 24‑month warranty – looked extraordinary for a routine workhorse. In this review we’ll walk through our hands‑on impressions of setup and calibration, response and stability, maintenance demands, and overall durability so you can decide whether this orion ROSS Ultra triode belongs in your toolkit.
If you’ve ever wrestled with finicky electrodes or spent more time reconditioning probes collecting data, we think our testing will be useful. Read on for a closer look at how this electrode performs when the pace picks up and the measurements matter.

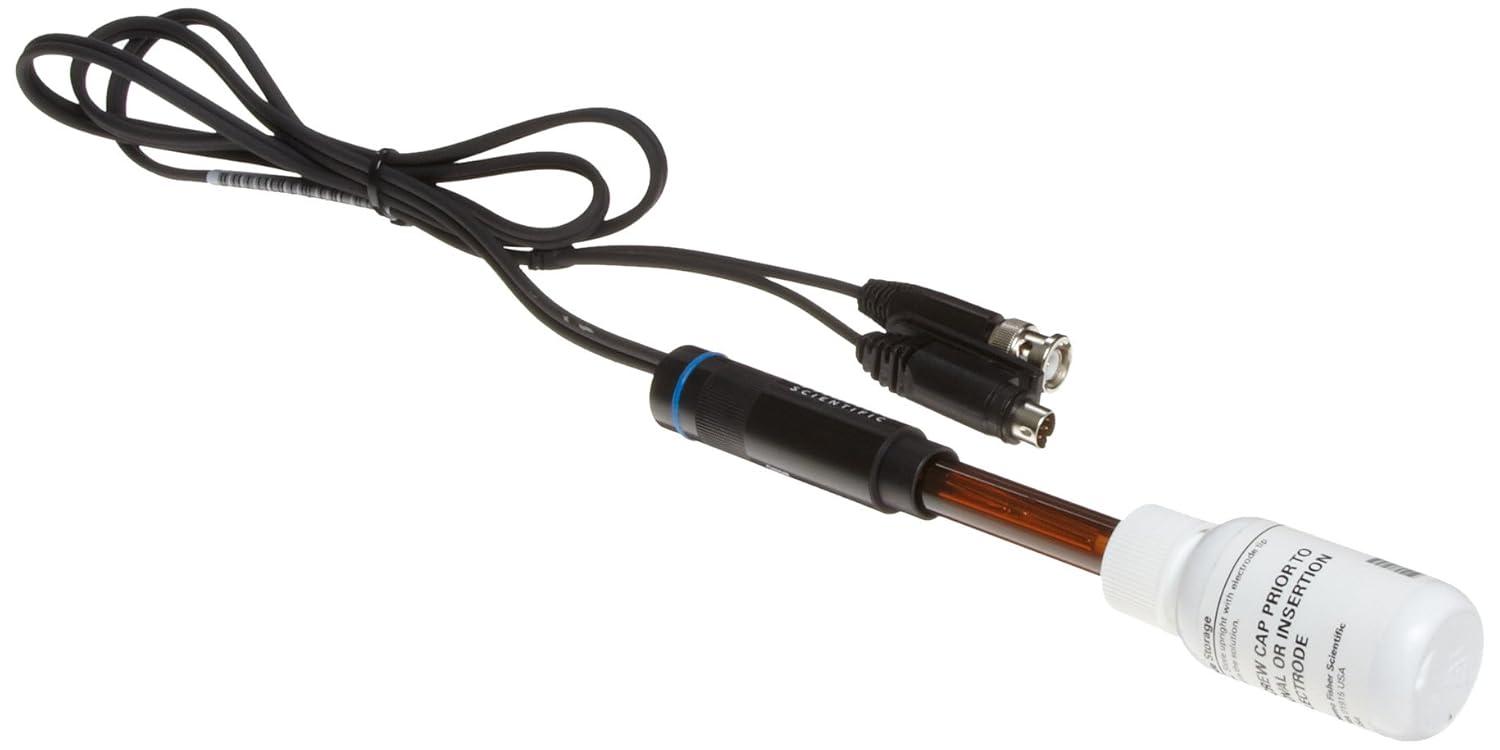

Our Hands on Overview of the Thermo Scientific Orion ROSS Ultra Low Maintenance Triode
We put this probe through everyday bench work and appreciated how low maintenance it feels in use.Its gel-filled, triode design and patented internal reference noticeably cut down on drift and equilibrium time, so readings settle faster than many electrodes we’ve used. The epoxy body and glass-fiber junction give a reassuring durability without adding bulk, and the waterproof BNC with a 1 m cable and 8‑pin Mini‑DIN connector made integrating with our meters easy and splash-proof.In practice the automatic temperature compensation (ATC) for simultaneous pH and temperature reading kept results consistent across a variety of samples.
Performance-wise, the probe covers a full pH 0-14 span with tight resolution (±0.01, ±0.03 using ATC) and a temperature range of 0-100 °C (±1 °C). We noted the isopotential point at pH 7 and the compact footprint (about 120 mm × 12 mm) worked well in narrow vessels; remember that buffer and storage solutions are sold separately. Below is a quick spec snapshot from our hands-on evaluation:
| Spec | Value |
|---|---|
| pH range | 0-14 (±0.01) |
| Temp range | 0-100 °C (±1 °C) |
| Warranty | 24 months |
| Cable / Connector | 1 m / Waterproof BNC + 8‑pin mini‑DIN |
See current price and availability on Amazon
Features That Captured Our Attention from the Waterproof BNC mini DIN Connector to the Wide pH Coverage
We were promptly impressed by the practical design choices that prioritize reliability in everyday lab work. The combination of a waterproof Bayonet Neill‑Concelman (BNC) connection with a 1 m cable and an 8‑pin Mini‑DIN connector makes integration with benchtop meters effortless, while the gel‑filled triode construction keeps routine maintenance to a minimum. Built with an epoxy body and a glass fiber junction, the electrode feels rugged yet precise; a patented internal reference reduces drift and shortens equilibrium time, and the inclusion of automatic temperature compensation lets us capture accurate pH and temperature data together.
Performance specs sealed the deal for us: a full 0-14 pH range with tight accuracy, temperature coverage to 100 °C, compact dimensions and an extended 24‑month warranty that outstrips typical electrode coverage. Below is a quick reference snapshot we found useful when comparing options in our lab:
| Attribute | Value |
|---|---|
| pH range | 0 – 14 (±0.01; ±0.03 with ATC) |
| Temperature | 0 – 100 °C (±1 °C) |
| Dimensions / Cable | 120 × 12 mm / 1 m cable |
| isopotential | pH 7 |
| Warranty | 24 months |
Keep in mind buffer and storage solutions are sold separately, so we budget for those consumables when planning long‑term use. Ready to add one to your setup? Check it on Amazon
Our In Depth Performance Analysis and Practical Recommendations for Calibration Maintenance and Field Use
In our hands the electrode delivered the kind of stability and ruggedness you expect for routine lab and field work: pH readings across the 0-14 range were consistent with the stated resolution (±0.01 pH nominal,±0.03 pH when relying on ATC),and temperature compensation behaved predictably across typical environmental shifts. The gel-filled triode design proves genuinely low-maintenance, while the patented internal reference noticeably reduces drift and shortens equilibration time after immersion in new samples.The epoxy body and glass-fiber junction give us confidence for tougher sampling conditions, and the waterproof BNC with a 1 m cable plus 8‑pin Mini‑DIN connector makes hot‑swap and field connectivity straightforward. Below is a quick snapshot of the specs that matter most during performance checks:
| Metric | Observed/Notes |
|---|---|
| pH accuracy | ±0.01 (±0.03 with ATC) |
| Temp range | 0-100 °C (±1 °C) |
| Warranty | Extended 24 months |
For calibration and field maintenance we settled on simple, repeatable routines that preserve accuracy without overcomplicating workflow. Calibrate with fresh buffers before critical runs (daily for high-precision work, weekly for routine monitoring), always use a proper storage solution between uses (sold separately), and avoid leaving the sensor dry-gel-filled construction helps, but moisture is still essential. our practical checklist includes:
- Calibration cadence: fresh buffers, two‑point minimum for pH scale.
- Storage: keep electrode moist in recommended solution; do not freeze.
- Field handling: protect the glass tip, secure the BNC/Mini‑DIN connection, and rinse with distilled water between samples.
If you want a reliable, low‑maintenance probe with proven stability and a reassuring 24‑month warranty, consider adding one to your toolkit: Buy on Amazon
Pros & Cons
We distilled our hands‑on impressions into a quick pros & cons snapshot below, followed by a few short notes. this is a thoughtfully engineered lab electrode with practical trade‑offs we’d weigh before buying.
| Pros | Cons |
|---|---|
| Low‑maintenance,gel‑filled design | Not truly maintenance‑free |
| Patented internal reference reduces drift | 8‑pin Mini‑DIN connector needs compatible meters/adapters |
| Waterproof BNC + 1 m cable for secure hookups | 1 m cable can be short for some setups |
| Wide pH range (0-14) and ATC for temp compensation | Accuracy varies with ATC (±0.01; ±0.03 using ATC) |
| Durable epoxy body and 24‑month warranty | Storage/buffer solutions sold separately |
Why we like it
- We appreciate the gel‑filled triode design – it genuinely cuts down on the daily upkeep compared with energy‑sapping refillable probes.
- The patented internal reference feels like an actual enhancement: we noticed steadier readings and less frequent re‑equilibration during routine checks.
- The waterproof BNC mating with an 8‑pin Mini‑DIN keeps connections tidy and robust in a busy bench surroundings.
- The extended 24‑month warranty gives us extra confidence for long‑term lab use.
What held us back
- We’d caution that “low‑maintenance” is not “no maintenance.” Like all glass electrodes,periodic calibration and correct storage are still required to keep accuracy.
- The 8‑pin Mini‑DIN makes the electrode less plug‑and‑play with generic meters; we had to verify compatibility or budget for an adapter.
- The 1 m cable is convenient for benchtop meters but can be restrictive if your setup needs extra reach.
- Although the pH range is full scale (0-14),the accuracy spec shifts with ATC – ±0.01 (nominal) vs. ±0.03 when ATC is engaged – so verify what level of precision your submission actually needs.
- Buffers and storage solutions aren’t included, so factor those consumables into the total cost of ownership.
In short, we see this ROSS Ultra triode as a rugged, low‑maintenance choice for routine lab pH work – provided your meter accepts the connector and you pencil in the usual calibration and storage care.
Q&A
Q: What exactly does the ROSS Ultra triode measure?
A: It measures pH and temperature. The triode design combines a pH sensing glass, an internal reference, and a temperature sensor (for ATC) in one gel‑filled combination electrode.
Q: How accurate is it?
A: according to the specs, pH accuracy is ±0.01 (and ±0.03 when ATC is engaged) and temperature accuracy is ±1.0 °C. Those numbers set expectations for precise lab work when the electrode is used and calibrated correctly.
Q: What makes this electrode “low maintenance”?
A: It’s gel‑filled rather than liquid‑filled,which reduces refilling and spillage issues. It also includes a patented internal reference designed to minimize drift and shorten equilibrium time, so we expect fewer calibrations and less day‑to‑day fuss.
Q: What connector does it use and will it fit our meter?
A: It has a waterproof BNC (Bayonet Neill‑Concelman) connection with a 1 m cable that ends in an 8‑pin Mini‑DIN. Meters that accept a waterproof BNC or that are compatible with the 8‑pin Mini‑DIN wiring shoudl work – but we advise checking your meter manual or vendor to confirm pinout compatibility before purchasing.
Q: Is this electrode rugged enough for fieldwork?
A: The epoxy body and waterproof BNC cable make it reasonably robust for portable or field use, but it’s still a glass‑based pH electrode and should be handled with the usual care. The waterproof connector helps if you’re working in wet environments.
Q: What is the pH and temperature range?
A: pH range is 0 to 14 (full scale).Temperature range is 0 to 100 °C. Note the temperature accuracy limit listed above applies across that range.
Q: How do we store and maintain the electrode between uses?
A: The product listing notes that buffer and storage solutions are sold separately. Follow Thermo Scientific’s storage recommendations (typically a proper storage/holding solution or wetting cap) and keep the glass sensing tip from drying out. Rely on the gel fill and internal reference for lower maintenance, but don’t skip regular calibration.
Q: How frequently enough should we calibrate?
A: Frequency depends on sample types and usage. Because the internal reference reduces drift, we’d expect less frequent calibration than with some older designs; still, for reliable results we recommend routine calibration before critical measurements (daily or per‑use as your protocol requires).
Q: How long is the warranty?
A: Thermo Scientific extends the warranty to 24 months for the Orion Ultra line, which is longer than the typical 3-12 month warranties offered for many electrodes.
Q: What’s the “isopotential point” listed as pH 7 mean?
A: At pH 7 the electrode produces the baseline potential (zero mV), which is a reference point used in pH electrode calibration and theory. It’s a normal property of glass pH electrodes.
Q: Are cleaning and buffer solutions included?
A: No - buffers and storage/cleaning solutions are sold separately. We recommend having standard pH buffers (for two‑ or three‑point calibration) and appropriate cleaning/storage solutions on hand.
Q: How long will this electrode last?
A: Lifespan varies with sample types, frequency of use, and care. Gel filling and the internal reference can extend useful life and reduce maintenance,but abrasive,oily,or contaminated samples will shorten electrode life. We’ve found that attentive storage and proper cleaning are the biggest factors in longevity.
Q: Any compatibility caveats we should be aware of?
A: The key compatibility point is the 8‑pin Mini‑DIN termination; some meters require adapters or specific wiring. Also confirm your meter supports ATC if you want automatic temperature compensation. When in doubt, confirm pinout and ATC capability with the meter manufacturer.Q: Who makes this electrode?
A: It’s manufactured by Thermo Scientific (part of Thermo Fisher Scientific), a well‑known supplier of lab instruments and consumables.
If you’d like, we can add a short checklist for buying (meter compatibility, buffers, storage solution, protective cap) or suggest typical adapters and meters known to pair with Orion electrodes.
Embrace a New Era
As we wrap up our look at the ROSS Ultra triode, we come away impressed by how Thermo Scientific has balanced robustness and convenience. The gel-filled, low‑maintenance design and patented internal reference translate into less downtime and more consistent readings; paired with ATC for temperature‑compensated pH and a waterproof BNC with a 1 m cable and 8‑pin Mini‑DIN connector, it’s clearly built for routine lab work. The extended 24‑month warranty is a welcome reassurance compared with the shorter coverage common in this category.
Having mentioned that,this is still a traditional glass electrode: buffers and storage solutions aren’t included,and proper handling and storage remain critically important if you want the advertised ±0.01 pH precision (±0.03 with ATC) and long service life. For labs that need a durable, low‑drift probe that covers the full 0-14 pH scale and up to 100 °C, the 8107BNUMD is a strong, pragmatic choice.
If you’d like to check current availability or read more specs, head to the product page below.
View the Thermo scientific Orion ROSS Ultra Triode on Amazon
